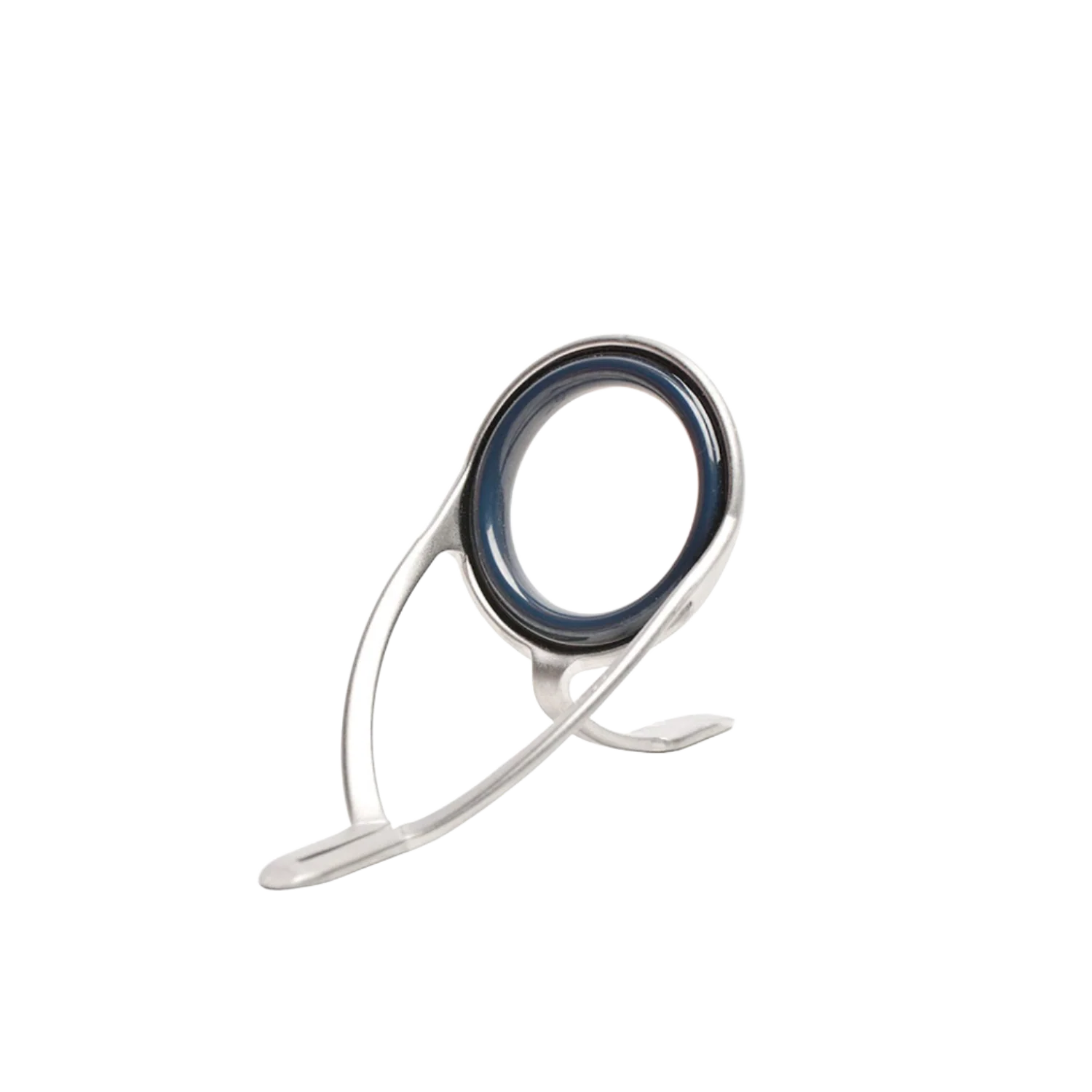

Fuji’s KW Series guides are built on the proven K-Series platform, offering a rugged double-foot frame with a sloped, tangle-free design optimized for both casting and spinning rod builds. Engineered to handle the demands of modern fishing techniques, KW guides provide strength, control, and exceptional performance across a wide range of applications—from freshwater bass rods to saltwater surf and boat rods.

Key Features:

• Tangle-Free K-Series Design: Sloped frame eliminates line wrap, especially with braided lines.
• Double-Foot Frame Construction: Provides maximum strength and stability for heavy-duty use.
• Multiple Ring Options: Available with Fuji’s full lineup of ring materials including Torzite®, SiC, Alconite®, Fazlite®, and Concept “O” – covering every performance need and price point.
• Corrosion-Resistant Frame Finishes: Choose from standard stainless steel or premium corrosion-control options for saltwater environments.
• KR Concept Compatible: Ideal as part of a KR Concept layout for enhanced line control and reduced weight.

Recommended For:
Spinning and casting rods used in freshwater, inshore, offshore, and surf environments. Perfect for custom rod builders seeking a high-performance, versatile guide series.

KR Guide Placement Software

Size Chart

Ring Size	Height (mm)	L1 Rear Foot (mm)	L2 Front Foot (mm)	Length (mm)
5.5	7.6	5.1	4.7	17.7
6	8.7	5.3	4.8	20.0
7	10.3	5.6	5.0	20.9
8	12.3	6.0	5.9	25.2
10	14.6	7.0	6.8	29.2
10M	18.1	9.8	8.0	36.5
12	17.4	8.0	8.0	33.4
12M	25.6	12.1	10.0	43.3
16	21.2	9.5	9.5	43.0
20	28.6	11.0	11.3	50.2
25	41.2	14.0	14.3	61.9
30	49.4	16.3	14.0	71.5
30L	59.6	16.0	16.4	76.6
40	59.7	20.0	18.0	96.6
40L	59.7	20.2	18.0	90.0
50	85.1	24.1	24.6	113.4

Note: Frame Height Codes – L = Low, M = Medium
