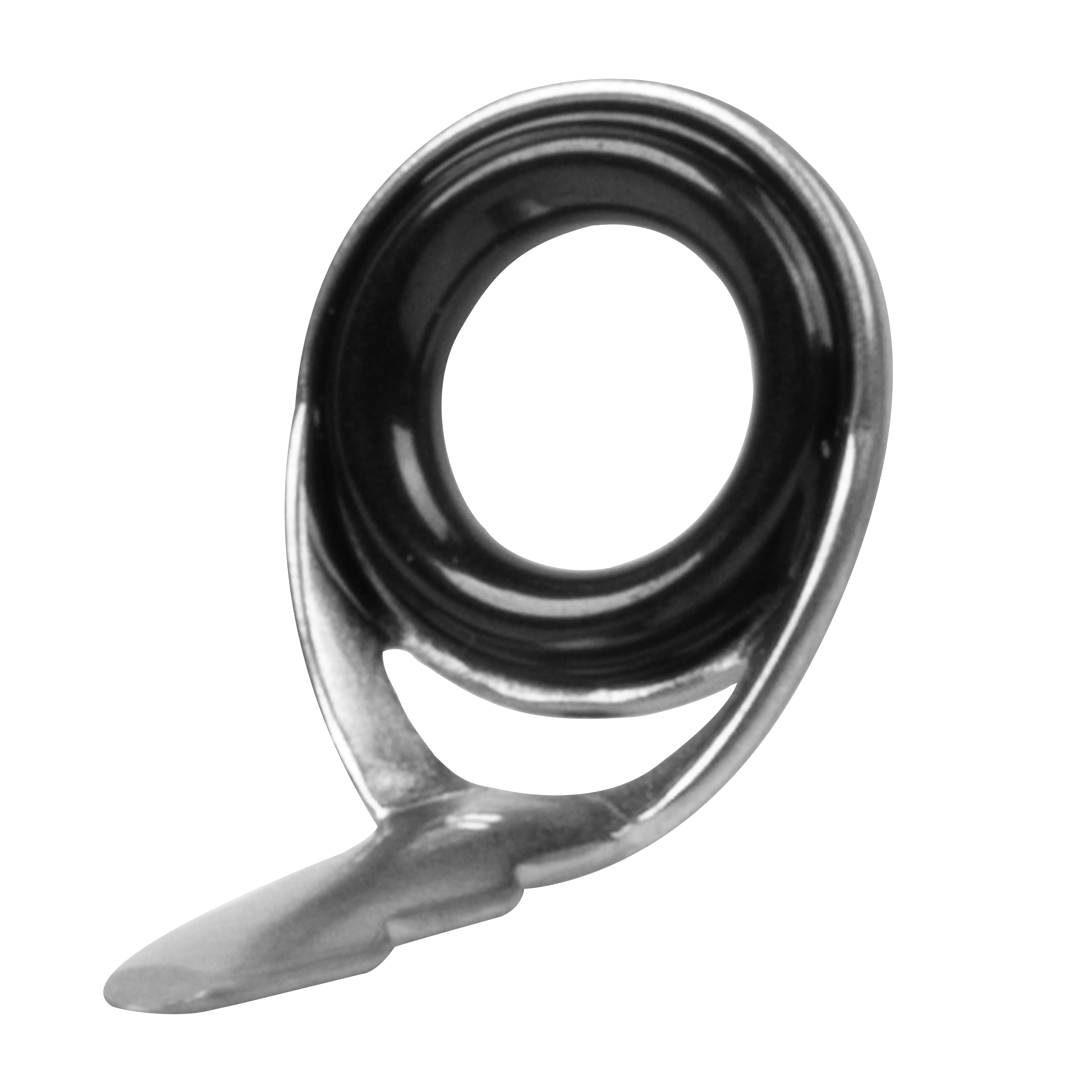

Fuji K-Series KB Single-Foot Belly Running Guides - Concept O
The Fuji KB Guide is a critical component in all K-Series and KR Concept layouts, serving as the transition (belly) guide between the reduction train and running guides. Positioned directly after the choke point, the KB combines strength, balance, and Fuji’s signature tangle-free design—ideal for handling the pressure in the midsection of the rod.
Key Features:
- Single-Foot “Belly” Guide: Specifically designed for the midsection of K-Series guide trains
- Tangle-Free K-Series Frame: Sloped design prevents line wrap, especially with braid
- Reinforced Frame Foot: Added strength to manage increased rod flex in the transition zone
- Pairs Perfectly with KT Runners: Forms a smooth and strong guide layout from choke to tip
- Multiple Ring Options Available: Choose from Torzite®, SiC, Alconite®, Fazlite®, or Concept “O”
Applications:
Used in both spinning and casting rods as the choke and mid-belly guide. Essential for KR Concept rods and recommended for any high-performance K-Series layout.
KR Guide Placement Software
Size Chart
| Ring Size | Height (mm) | Foot Length (mm) | Total Length (mm) |
|---|---|---|---|
| 4 | 5.3 | 8.3 | 11.1 |
| 4.5 | 5.8 | 8.3 | 11.5 |
| 5 | 6.5 | 8.5 | 12.1 |
| 5.5 | 7.3 | 9.0 | 13.1 |
| 6 | 8.2 | 9.4 | 13.8 |
| 7 | 9.3 | 9.7 | 14.5 |
Original: $1.63
-65%$1.63
$0.57Product Information
