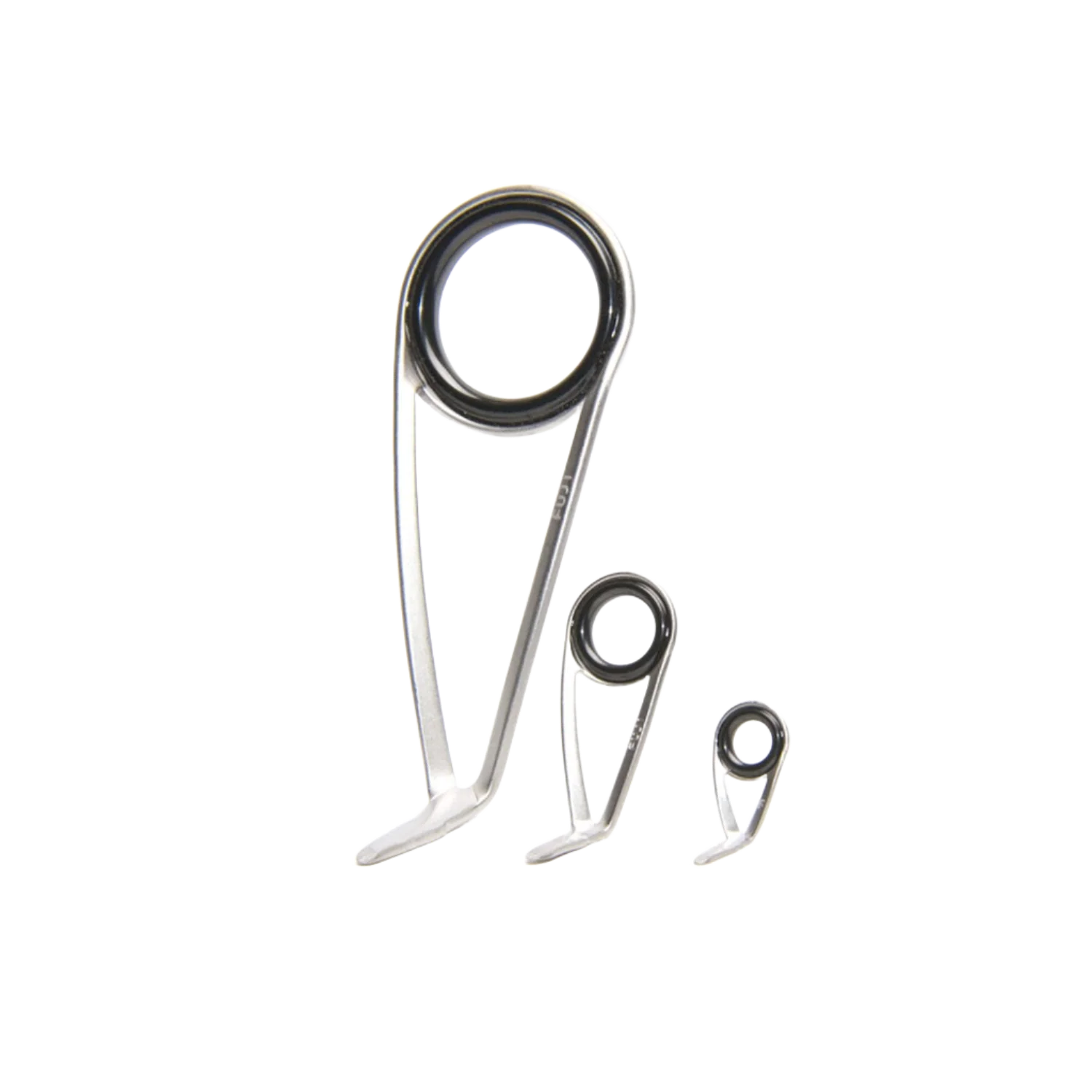

The Fuji KL series features single-foot spinning guides in three frame heights—Low (L), Medium (M), and High (H)—to offer precise control over guide train layouts for spinning rods. Whether you're building a traditional New Guide Concept (NGC) rod or a cutting-edge KR Concept layout, KL guides deliver lightweight strength, optimal line control, and Fuji’s signature tangle-free performance.
- KL-L: Low profile for compact guide trains
- KL-M: Medium height for progressive reduction layouts
- KL-H: High frame design for KR Concept and braid-specific setups
Key Features:
- Three Height Profiles (L, M, H): Customize reduction trains for ideal casting performance
- Tangle-Free K-Series Design: Sloped frame resists line wrap, especially with braid
- Slim & Lightweight: Ideal for sensitivity-focused builds
- Part of the KR Concept System: Often used with KB (belly) and KT (runner) guides
- Multiple Ring Options: Available in Torzite®, SiC, Alconite®, Fazlite®, and Concept “O”
Recommended For:
Spinning rods in freshwater and saltwater applications. Perfect for custom guide layouts where precise height control is required for line management and casting efficiency.
KR Guide Placement Software
Size Chart
| Ring Size | Frame Height | Height (mm) | Foot Length (mm) | Total Length (mm) |
|---|---|---|---|---|
| 5 | L | 9.3 | 7.4 | 12.1 |
| 5.5 | L | 10.8 | 9.2 | 14.1 |
| 5.5 | M | 14.6 | 10.0 | 16.8 |
| 6 | L | 12.2 | 9.2 | 15.5 |
| 6 | M | 18.4 | 11.0 | 18.0 |
| 7 | L | 13.2 | 9.4 | 16.0 |
| 7 | M | 19.4 | 11.0 | 19.3 |
| 8 | M | 20.8 | 12.0 | 21.3 |
| 8 | H | 26.8 | 13.5 | 24.0 |
| 10 | H | 30.2 | 16.0 | 28.6 |
| 12 | H | 31.8 | 17.0 | 29.0 |
| 16 | H | 43.3 | 18.0 | 35.4 |
| 20 | H | 50.8 | 20.0 | 37.5 |
| 25 | H | 55.9 | 22.0 | 43.4 |
Frame Height Key: L = Low, M = Medium, H = High
